• Besleme Gerilimi: 90–250 V AC, 24 V DC/AC
  • Maksimum Çıkış Sayısı: 11 çıkışlı
  • Scan Süresi: 200 ms
  • Haberleşme Protokolü: RS422, RS485, Profibus, TTL
  • Panel Koruma Sınıfı: IP 65
  • Sertifikalar: CE, cULus, DIN EN 14597
  • Gelişmiş Operator Fonksiyonları
  • Dahili Digital I/O
  • BlueControl®

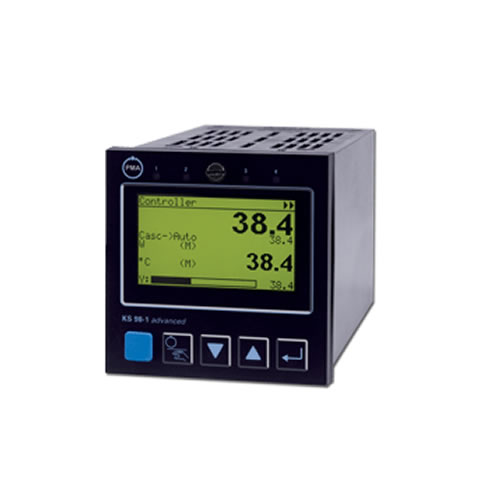

Product Category: Multi-loop Controller
Dimensions and size: 96m x 96mm x 118mm (HxWxD), 1/4 DIN
Connectors: Screw terminals
Primary Input Type: Universal (TC, RTD, DC linear mA/mV)
Other Inputs: External Set-point, Ratio input, Potentiometer input, Three component input, Mathematical Functions
Output Type: Measured valve output
Max. Number of Outputs: 11
Scan Time: 200 ms
Number of Programmer Segments: > 1000
Control Type: Fully programable. Includes 2-point (on/off), continuous PID control, or 3-point stepping, cascade, ratio etc
Power Supply: 24 V AC/DC, 90-250 VAC
Communications: TTL, Modbus RS422/485, PROFIBUS DP
Panel Sealing: IP65
Certifications: CE, cULus, DIN EN 14597
Software Tools: Blue Control Basic

Engineering Tool ET/KS 98 Plus

Downloader DL/KS 98-1

Simulation SIM/KS 98
